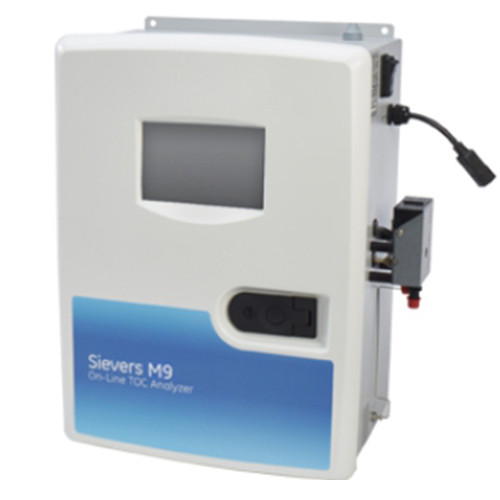

M9 On-line TOC Analyzer, TOC 측정기

M9 and M9e Laboratory Analyzer

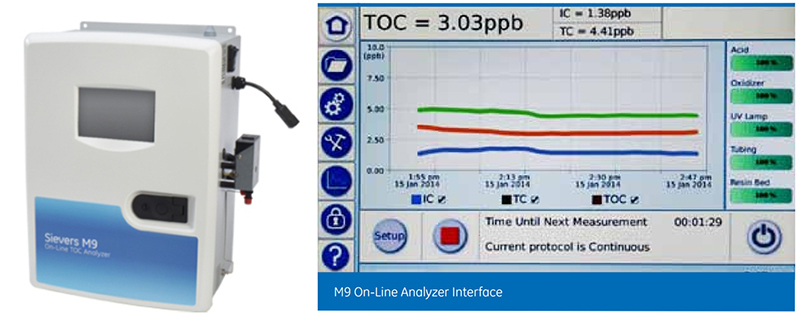

M9 and M9e On-Line Analyzer

M9 and M9e Portable Analyzer

Operating Specifications

Range

0.03 ppb ~ 50 ppm

Precision

<1% RSD

Accuracy

± 2% or ± 0.5 ppb, whichever is greater

Sample Type

Autosampler or discrete grab sample

On-line continuous or discrete grab sample

On-line continuous,

Autosampler, or discrete grab sample

Display Readout

3 significant digits

Calibration

Typically stable for 12 months

Analysis Time

2 minutes (4 seconds with the optional Turbo mode)

Sample Temperature1

5-95 °C (41-203 °F)

Ambient Temperature

5-40 °C (41-104 °F)

Sample Pressure

n/a

100 psig

On-Line Flow Rate

n/a

>50 mL/min (for on-line mode)

Instrument Sample Flow Rate

0.5 mL/min

Analyzer Specifications

Outputs

USB device port (1),

USB host ports (3); Modbus

TCP/IP

4-20 mA outputs (3); alarm outputs (4); binary input (1);

USB device port (1), USB host ports (2);Modbus TCP/IP

Display

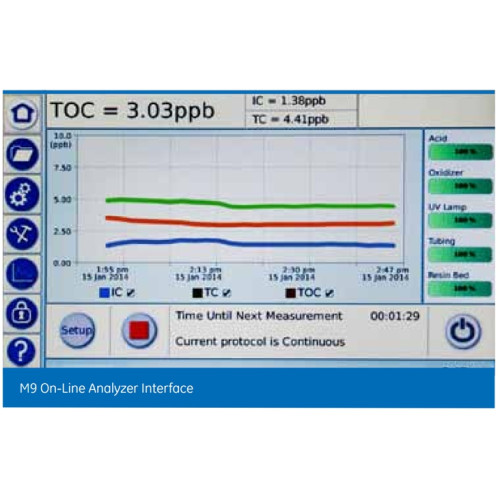

                      7” WVGA 800x480 pixel, Color LCD w/touch-screen

Power

                       100 – 240 V~, 50 – 60 Hz, 100 VA

Fuses

Replace with same type and size fuse:

T 1.6 A 250 VAC Fuse (Slow Blow), size 5 x 20 mm appliance inlet

Dimensions

H: 42.2 cm (16.6 in.);

W: 24.6 cm (9.7 in);

D: 40.0 cm (15.8 in)

H: 54.9 cm (21.6 in);

W: 45.0 cm (17.7 in);

D: 26.5 cm (10.4 in)

H: 39.5 cm (15.4);

W: 22.9 cm (9.0 in);

D: 46.4 cm (18.3 in)

Weight

9.4 kg (20.6 lb)

15.8 kg (34.9 lb)

9.4 kg (20.8 lb)

Enclosure Rating

n/a

IP-45

IP-21

Safety Certifications

ETL. CE

Sample Conductivity2 (Optional)

Raw Conductivity Range

0.01 to 2,000 mS /cm

n/a

0.01 to 2,000 mS /cm

Conductivity Accuracy

±0.005 mS/cm or ±1%, whichever is greater

n/a

±0.005 mS/cm or ±1%, whichever is greater

Conductivity Precision

<0.25% RSD

n/a

<0.25% RSD

Environment

Maximum Relative Humidity

0 – 95%, non-condensing

Maximum Altitude

3,000 m (9,800 ft)

Pollution Degree

2
