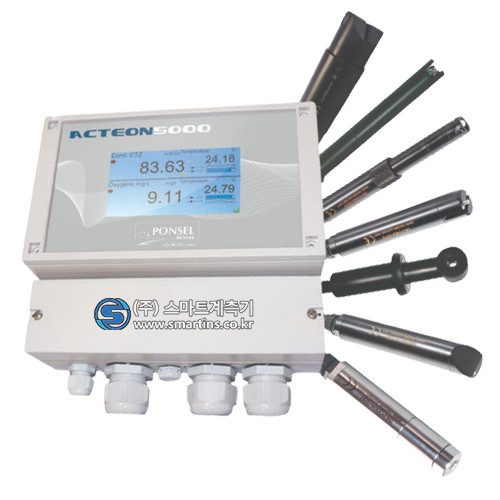

· pH, ORP, 온도, 용존 산소(광학), 전도도, 염분, 탁도 (NTU, mg/L), 부유 고형물 (g/L), 슬러지 블랭킷 검출(%)
· 센서 선택(옵션)
· 2채널측정시 센서 2개 선택(옵션)
SOFTWARE AND FEATURES | |
Digital sensor | 2 inputs digital sensor |
2 anlalog input | In mode 0/4-20 mA or 0-10 V |
2 relay input | Function of transfer on exit(release) TOR Information of external cleaning system : swing in maintenance mode |
2 analog outputs | Choice of 2 parameters programmable according to the connected sensor |
2 digital outputs /relay | NO/NF customizable Instruction point: setting of the measuring range (Hysteresys / activation way) and time of activation, Command for external cleaning system Output alarm for defect material sensor |
Data recording | Internal flash memory Frequency recording: 1-120 mn Recording journal of events, measure sensors |
Atmospheric pressure sensor | To compensate oxygen pression |

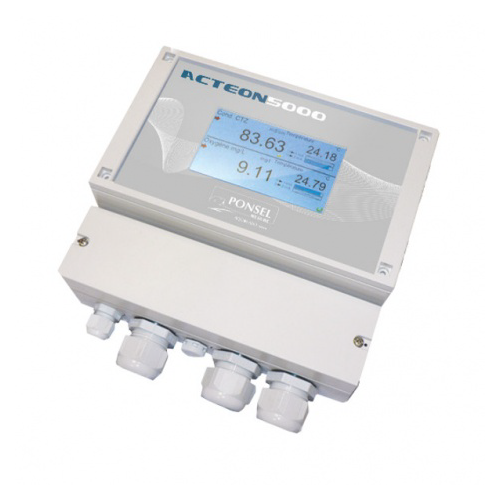

CHARACTERISTICS | |
Display | Backlit graphic LCD touch Screen – Size95x54 mm |
Analog outputs | 0/4.00 – 20.00 mA with galvanic isolation Charge max 250 W |
Relay outputs | 6 A /250 V |
Operating conditions | Temperature : -15°C to + 50 °C Temperature of storage/transport : -15°C to + 50°C |
USB port | Unloading of the recorded dat |
Power/ Electrical protections | 100-240 V AC/DC 50-60 Hz - Option 9-28 V DC/DC - Electrical protection: consistent EN61010-1 :2010 |
HOUSING | |
Dimensions (LxHxP) | 213 x 185 x 84 mm |
Material | Grey ABS |
Protection rating | IP 65 |
Front | Antireflective polyester |
센 서 사 양
| Parameter | Principle | Range | Precision | Material | |
O P T I C | Oxygen | Optical fluorescence | 0,00-20,00 mg/L 0 – 200 % | ± 0,1 mg/L ± 1 % | PVC special membrane, 316L stainless steel or titanium, herazil | Temperature Compensation via CTN, of pression and salinity |
Turbidity | IR nephelometry (diffusion 90°) | 0,0-50,0 NTU 0,0-200,0 NTU 0-1000 NTU 0-4000 NTU Automatical NTU 0 – 4500 mg/L | < 5% of reading | PVC, PMMA, Inox | Temperature compensation via CTN | |
Suspended Solid sensor | Optical IR (870 nm) based on IR absorption | Sludge blanket : 0-100 % SS : 0-50 g/L Turbidity : 0-4000 FAU | SS< 10 % Turbidity : +/- 5% (range 200-4000 FAU) Sludge blanket : +/- 2% | DELRIN, Nickel-plated brass, EPDM | Temperature regulation of optics via CTN | |
VB5 Sludge Blanket Detection sensor | Optical IR (870 nm) based on IR absorption | 0-100% | +/- 2% | Nickel-plated brass, EPDM | Temperature regulation of optics via CTN | |
E L E C T R O C H M I S T R Y | pH/Temp | combined Electrode (pH/Reference) | 0,00 – 14,00 pH 0,00 to +50,00 °C | ± 0,1 pH | Special glass pH Reference Ag/AgCl to gelled electrolyte Temperature: CTN | Temperature compensation via CTN |
Redox | combined Electrode to peak of platinum | - 1000,0 to + 1000,0 mV | ± 2 mV | Delrin, PVC, glass, platinum | Reference Ag/AgCl to gelled electrolyte | |
Redox Annular | combined Electrode to ring of platinum | - 1000,0 to + 1000,0 mV | ± 10 mV | Delrin, glass, platinum | Reference Ag/AgCl to gelled electrolyte | |
Conductivity | 4-electrode amperometric | 0-200,0 μS/cm 0 –2000 μS/cm 0,00 –20,00 mS/cm 0,0 –200,0 mS/cm Automatical | ± 1 % of full scale | 2 graphite electrodes, 2 platinum electrodes DELRIN | Temperature compensation via CTN | |
Salinity | 4-electrode amperometric | 5,00-60,00 g/Kg | <5% of full scale | 2 graphite electrodes, 2 platinum electrodes DELRIN | Temperature compensation via CTN | |
Inductive Conductivity | Inductive Method | 0-100 mS/cm | <5% of full scale | EPDM, PVC, Inox | Temperature compensation via CTN | |
Inductive Salinity | Inductive Method | 5,00-60,00 g/Kg | <5% of full scale | EPDM, PVC, Inox | Temperature compensation via CTN |
| 품명 | 2채널 다항목 측정기 |
|---|---|
| 모델명 | ACTEON5000-2C |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상세설명페이지 참고 |
| 제조국 또는 원산지 | AQUALABO / 프랑스 |
| 제조자 | AQUALABO |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 스마트계측기 TEL. 02-896-7868 FAX. 02-895-7868 직통번호: 010-4816-7868 |
