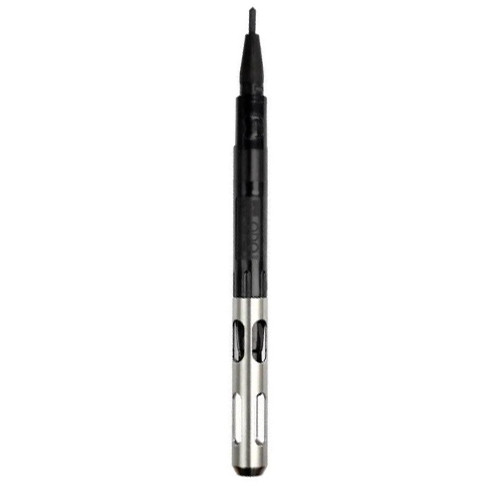

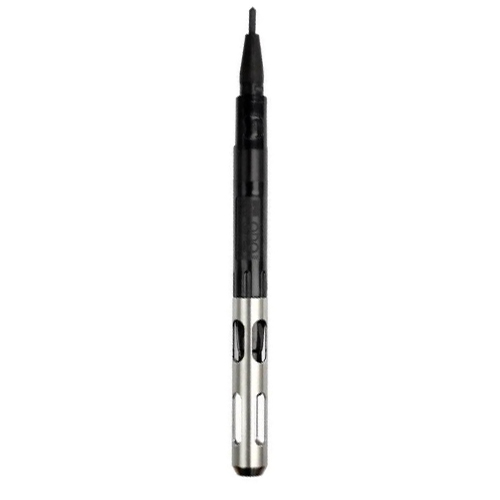

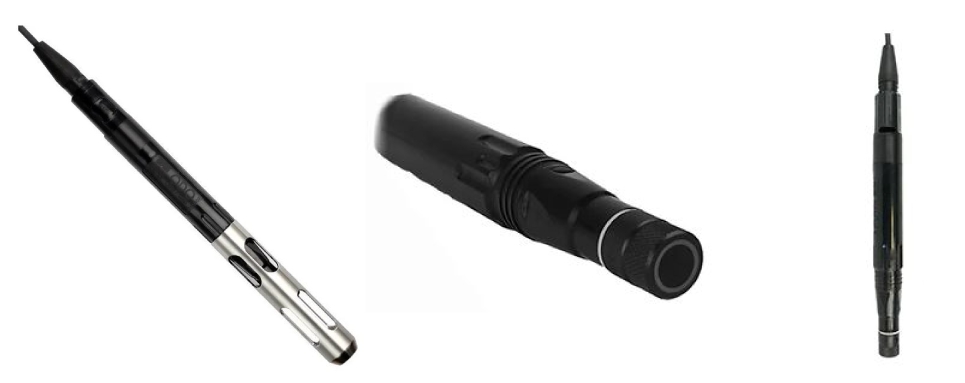

ODO/CT-4 ProSolo용 DO / 전도도 전극 4m 케이블 627150-4

센서 사양 (ODO/CT)

크기

2.46 cm diameter, cable options for 1, 4, 10, 20, 30, 50, and 100 m lengths

용존산소 (광학식)

단위: % saturation, % saturation local, mg/L, ppm

Range: 0 to 500%, 0 to 50 mg/L;

Accuracy:

   0 to 200%: ±1% of reading or 1% saturation, whichever is greater;

   200 to 500%: ±8% of reading;

   0 to 20 mg/L: ±0.1 mg/L or 1% of reading, whichever is greater;

   20 to 50 mg/L: ±8% of reading;

Resolution: 0.01 mg/L and 0.1%, or 0.1 mg/L and 1% (auto-adjusts based on range)

온도 (서미스터)

단위: °C, °F, K

Range: -5 to 70°C (temperature compensation range for DO mg/L measurement: -5 to 50°C );

Accuracy: ±0.2°C;

Resolution: 0.1°C or 0.1°F (auto-adjusts based on range)

전도도(4센전극)

단위:uS/cm, mS/cm

Range: 0 to 200 mS/cm;

Accuracy:

   0 to 100 mS/cm ±0.5% of reading or .001 mS/cm, whichever is greater;

   100 to 200 mS/cm ±1.0% of reading;

Resolution: 0.001, 0.01, or 0.1 μS (range dependent)

염분

Range: 0 to 70 ppt

Accuracy: ±1.0% of reading or ±0.1 ppt, whichever is greater

Resolution: 0.01 pp
