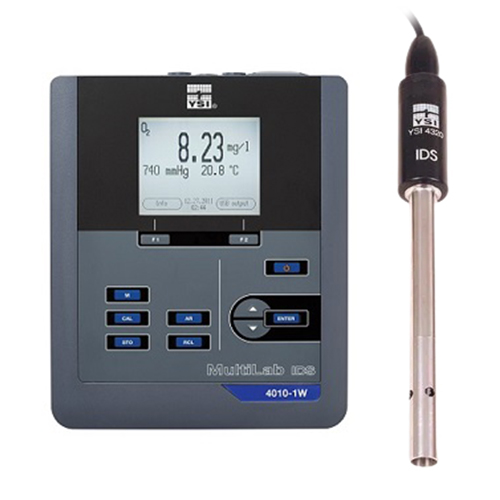

MultiLab 4010-1W 실험실용 전도도측정기 IDS 4320 전도도전극

Instrument Model

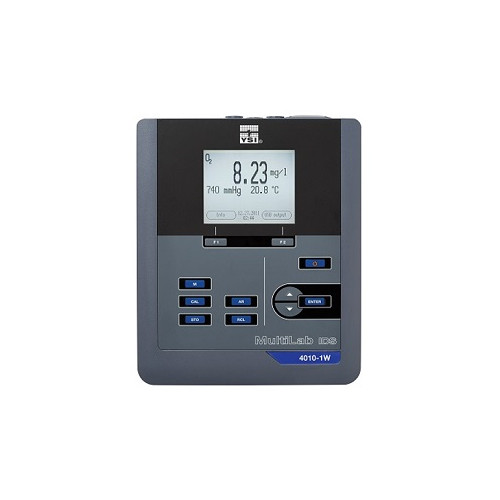

                     Model 4010-1W

Model 4010-2W and Model 4010-3W

Measurement Channels

1

2 (4010-2) or 3 (4010-3)

Data Storage

500 data sets manual; 5,000 automatic

500 data sets manual; 10,000 automatic

Interface

Mini USB

Mini USB; USB-A

Display

Graphic, Backlit

Color, Graphic, Backlit

Power Supply

Universal power supply, 4 AA 1.5 V batteries

Universal power supply

All Models (4010-1W, 4010-2W, 4010-3W)

Parameters

pH, ORP (mV), Dissolved Oxygen % and mg/L with Electrochemical BOD, Optical-based BOD or FDO probe, Barometric Pressure, Conductivity, Resistivity, Salinity, Total Dissolved Solids, Temperature , extensive offering of ISEs and specialy pH electrodes*

Temperature Compensation

Yes

Calibration Points

DO = 2; pH = 1 to 5; 4310 conductivity probe = 1 point; ISEs: 2 to 7

Calibration Storage

Max. 10

Calibration Timer

1 to 999 days

GLP/AQA Compliant

Yes

LIMS Connection

Yes

Certifications

CE, cETLus

Instrument Model

                  4310 Conductivity Probe

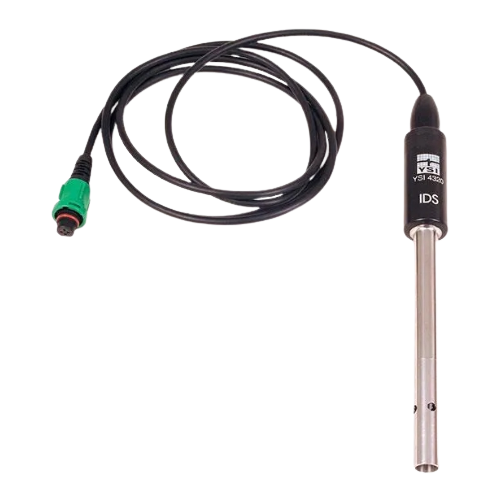

                  4320 Conductivity Probe

Type

4-electrode, graphite

2-electrode, stainless steel

Conductivity Range

10 µS/cm ~ 2,000 mS/cm (±0.5% of value)

0.01 µS/cm ~ 200 µS/cm (±0.5% of value)

Resistivity

0.5 Ohm cm ~ 100 kOhm cm (±0.5% of value)

5 kOhm cm ~ 100 MOhm cm (±0.5% of value)

Salinity

0.0 ~ 70.0 ppt (±0.5% of value)

                                     ---

Total Dissolved Solids

0 ~ 1,999 mg/L; 0.0 ~ 199l9 g/L (±0.5% of value)

                                     ---

Temperature Range

0 ~ 100°C (32 to 212°F)

0 ~ 100°C (32 to 212°F)

Temperature Accuracy

±0.2°C

±0.2°C

Cell Constant

0.475 cm ±1.5%

0.1 cm ±2%

Material

Epoxy

Stainless Steel

Dimensions

Length 120 mm (4.7 in); diameter 15.3 mm (0.6 in)

Length 120 mm (4.7 in); diameter 12 mm (0.47 in)

Cable Length

Wireless, 1.5 m, or 3 m

1.5 m

Battery Life (Wireless)

30 hours

                                     ---

Instrument Model

IDS4100

Type

Polarographic, membrane-covered BOD probe with self stirring mechnism

Dissolved Oxygen Range

0 to 50 mgL; 0 to 500% saturation

Dissolved Oxygen Accuracy ***

0 to 20 mg/L: ±0.2 mg/L or 2% of reading whichever is greater; 20 to 50 mg/L: ±6% of reading;

0 to 200%: ±2% or 2% of reading whichever is greater; 200 to 500%: ±6% of reading

Dissolved Oxygen Resolution

0.01 mg/L; 0.1%

Temperature Range

-5 to 50°C

Operating Temperature Range (Meter)

0 to 40°C

Temperature Accuracy

±0.2°C

Temperature Resolution

0.1°C

Typical Response Time

95% in 8 seconds with Yellow PE membrane; 95% in 18 seconds with Teflon® membrane

Cable Length

1.5 m

Instrument Model

ProOBOD IDS 626500

Type

Optical; lifetime luminescence detection with self-stirring mechanism

Dissolved Oxygen Range

0 to 50 mgL; 0 to 500% air saturation

Dissolved Oxygen Accuracy ***

0 to 20 mg/L, ±0.1 mg/L or ±1% of reading, whichever greater; 20 to 50 mg/L, ±10% reading (system)

Dissolved Oxygen Resolution

0.01 mg/L; 0.1%

Temperature Range

Ambient 10 to 40°C (50 to 104°F); Compensation mg/L -5 to 50°C (23 to 104°F) (extrapolates beyond 45°C)

Temperature Accuracy

±0.2°C

Temperature Resolution

0.1°C

Typical Response Time

95% in 22 seconds with stirring; 95% in 40 seconds without stirring

Instrument Model

   4110 pH Electrode

  4120 pH Electrode

4130 pH Electrode (refillable)

4210W & 4211 ORP (refillable)

pH Range

0.000 to 14.000 (±0.004**)

---

---

-1200 to +1200 mV (±0.2 mV)

Temperature Range

0 to 80°C (32 to 176°F)

0 to 80°C (32 to 176°F)

0 to 100°C (32 to 212°F)

0 to 100°C (32 to 212°F)

Temperature Accuracy

±0.2°C

±0.2°C

±0.2°C

±0.2°C

Reference Electrode

Gel

3 mol/l KCl

3 mol/l KCl

3 mol/l KCl

Membrane Shape

Cylinder

Cylinder

Cone

---

Diaphragm

Fiber

Ceramic

Platminum Wire

Ceramic

Material

Plastic

Plastic

Glass

Glass

Dimensions

Length 120 mm (4.7 in);

diameter 12 mm (0.47 in)

Length 120 mm (4.7 in);

diameter 12 mm (0.47 in)

Length 120 mm (4.7 in);

diameter 12 mm (0.47 in)

Length 120 mm (4.7 in);

diameter 12 mm (0.47 in)

Cable Length

Wireless, 1.5 m, or 3 m

Wireless or 1.5 m

Wireless or 1.5 m

Wireless or 1.5 m

Battery Life (Wireless)

60 hours

60 hours

60 hours

60 hours
