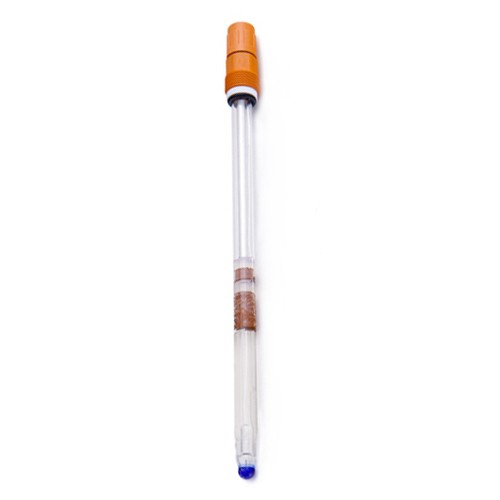

품명 | pH FermProbe with K9 Meteic Cap(option)/F-695 Series | ||||
모델 | F695-B120 | F695-B200 | F695-B225 | F695-B325 | F695-B420 |
측정범위 | 0-13 | ||||
사용온도 | Steam sterilizable to 135° C | ||||
압력 | 150 psig maximum pressure | ||||
비교전극 | Double junction, Ag-AgCl reference system | ||||
케이블 | Option(1m, 3m, 5m, 10m, 최대 30m) | ||||
Ordering Information
Model F-695 pH FermProbe with Standard Metric Cap
Electrode Model | Use with these Housing Models | Electrode Length | Cable Length | Connector | Electrode Part Number |
F-695 | 120 mm |
Order Separately | F-695-B120-DK | ||
F-695 | 200 mm | F-695-B200-DK | |||
F-695 | 3L-5L Vessel | 225 mm | F-695-B225-DK | ||
F-695 | 7L-15L Vessel | 325 mm | F-695-B325-DK | ||
F-695 | 15L-20L Vessel | 420 mm | F-695-B420-DK | ||
F-695 | Many other lengths available, contact for information. | XXX mm | F-695-B480-DK | ||
Note: the vessel sizes are for guidance only – check your own vessel dimensions or the length of the electrode you are replacing.
Compatible Cableshousings.
This FermProbe® style features a K9 detachable cable connection. We would recommend the following cables for use with the F-695 Autoclavable pH Electrode:
|
Cable
Type |
Sensor
Connector & Device Connector |
Device
Terminal |
|
|
|
|
|
|
|
|
|
|
|
|
Recommended

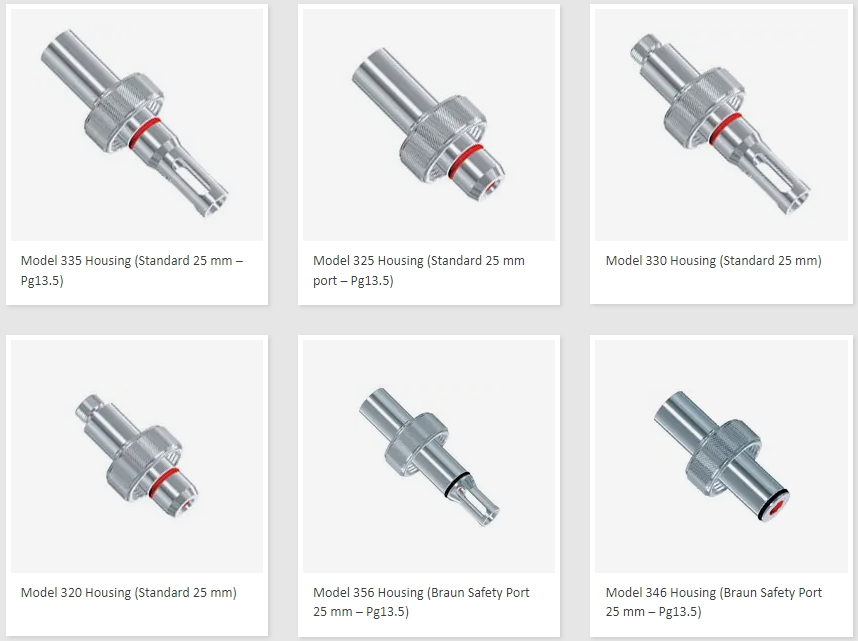

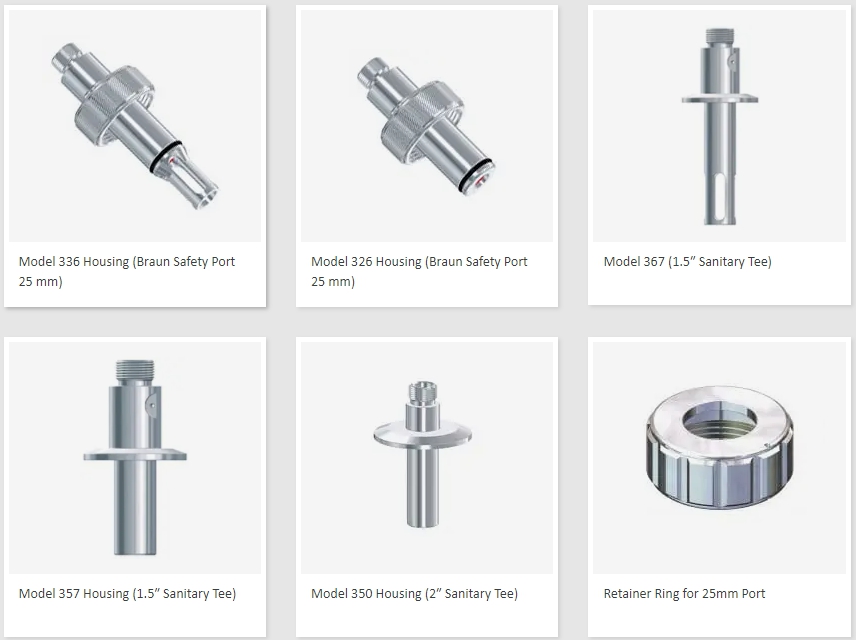

Housings
The F-695 pH Electrode has a metric Pg13.5 threaded polymer cap allowing it to be used with European style housings.
| 품명 | pH FermProbe |
|---|---|
| 모델명 | F695-B325-DK |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상세설명페이지 참고 |
| 제조국 또는 원산지 | BROADLEY JAMES / 미국 |
| 제조자 | BROADLEY JAMES |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02) 896-7868 |
