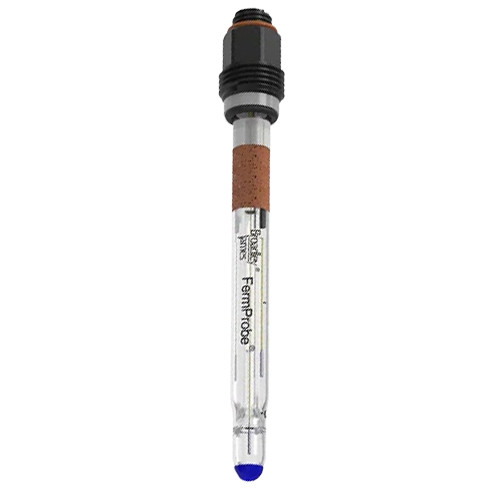

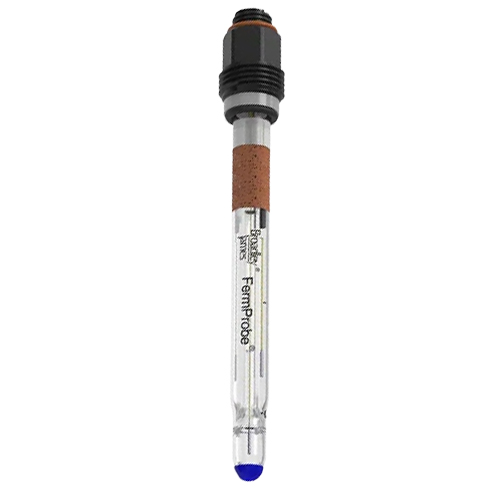

품명 | pH FermProbe with S8 Meteic Cap(option)/F-635 Series | ||||
모델 | F635-B120 | F635-B200 | F635-B225 | F635-B325 | F635-B420 |
측정범위 | 0 ~ 13 | ||||
사용온도 | Steam sterilizable to 135° C | ||||
압력 | 150 psig maximum pressure | ||||
비교전극 | Double junction, Ag-AgCl reference system | ||||
케이블 | Option(1m, 3m, 5m, 10m, 최대 30m) | ||||
Ordering Information
Model F-635 pH FermProbe with Standard Metric Cap
Electrode Model | Use with these Housing Models or Benchtop vessel sizes | Electrode Length | Cable Length | Connector | Electrode Part Number |
F-635 | <1L Vessel | 120 mm | Order Separately | F-635-B120-DH | |
F-635 | 1-3L Vessel | 200 mm | F-635-B200-DH | ||
F-635 | 3L-5L Vessel | 225 mm | F-635-B225-DH | ||
F-635 | 7L-15L Vessel | 325 mm | F-635-B325-DH | ||
F-635 | 15L-20L Vessel | 420 mm | F-635-B420-DH | ||
F-635 | Many other lengths available, contact for information | XXX mm | F-635-B480-DH | ||
Note: the vessel sizes are for guidance only – check your own vessel dimensions or the length of the electrode you are replacing.
Compatible Cableshousings.
|
Cable
Type |
Sensor
Connector & Device Connector |
Device
Terminal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Recommended
Housings

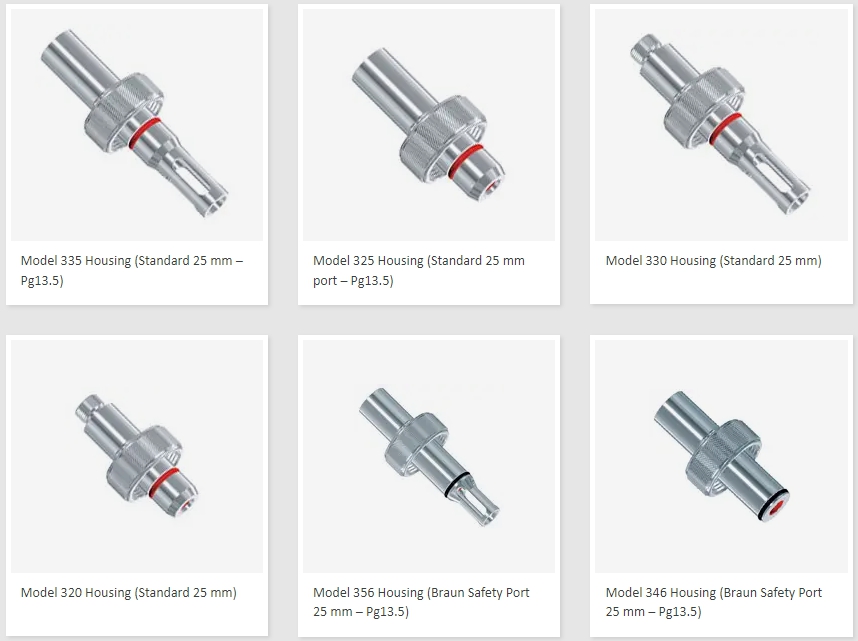

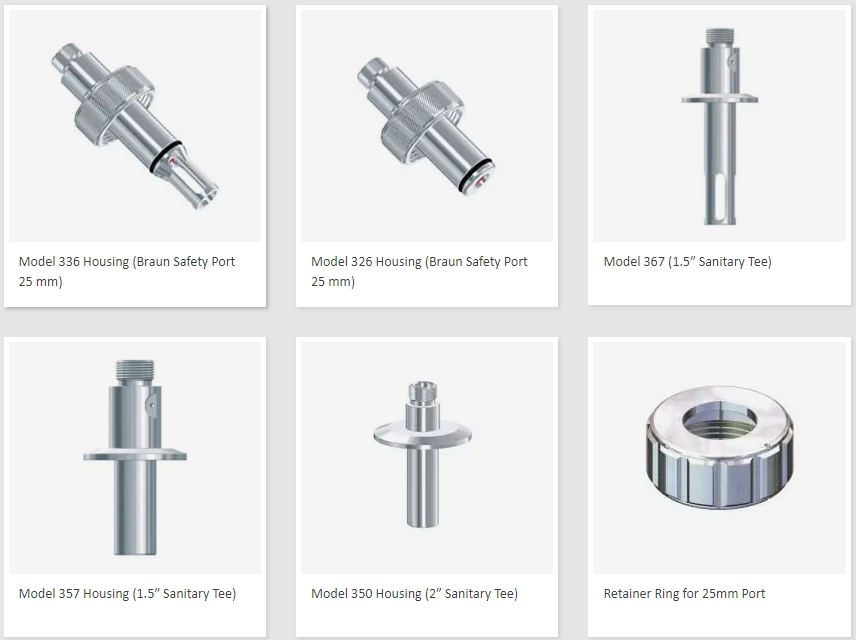

The electrode housing is designed to hold and protect the pH electrode when inserting it into the bioprocess vessel.
There are various types of side-entry ports and housing groups to fit each port type.
We offer a wide range of housings for all types of fittings that are each made of 316L electropolished stainless steel.
| 품명 | pH FermProbe |
|---|---|
| 모델명 | F635-B120-DH |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상세설명페이지 참고 |
| 제조국 또는 원산지 | BROADLEY JAMES / 미국 |
| 제조자 | BROADLEY JAMES |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02) 896-7868 |
