품명
|

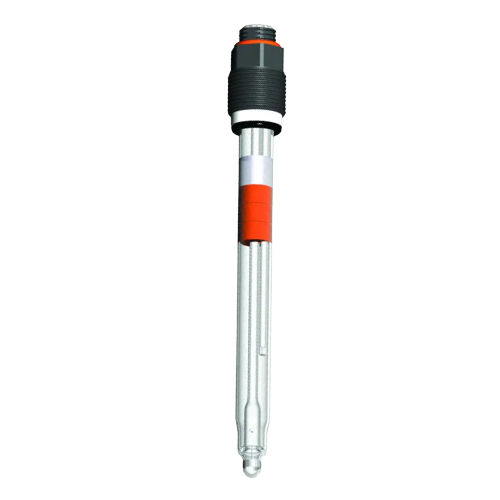

ORP FermProbe
|
모델
|
F935-B120-DH
|
측정범위
|
± 5000 mV
|
사용온도
|
Steam
sterilizable to 135° C
|
압력
|
150 psig
maximum pressure
|
비교전극
|
Double
junction, Ag-AgCl reference system
|
연결부
|
Metric Pg13.5 threaded disconnect cap
|
케이블
|
Option(1m, 3m,
5m, 10m, 최대 10m) |
Ordering Information
Series F-900 Redox FermProbes
|
Electrode Model |
Class |
Use with these Housing Models |
Electrode Length |
Electrode Part Number |
|
F-915 |
A |
130 mm |
F-915-B130-DH |
|
|
F-935 |
D |
120 mm |
F-935-B120-DH |
|
|
F-995 |
D |
120 mm |
F-995-B120-DK |
Compatible Cableshousings.
|
Cable
Type |
Sensor
Connector & Device Connector |
Device
Terminal |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
What is ORP (Redox)?
· The terms are interchangeable in meaning: ORP = Oxidation-Reduction Potential (Redox)
· The term ORP is more commonly used for bioprocess applications in Europe and the U.S.
· The term Redox is more commonly used for industrial chemical process applications in the U.S.
· The ORP potential of a media is related to the overall availability of electrons in the media, specifically the ratio of positive and negative ions in the solution.
· Note that ORP measurements vary significantly with changing pH.
| 품명 | ORP FermProbe |
|---|---|
| 모델명 | F935-B120-DH |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상세설명페이지 참고 |
| 제조국 또는 원산지 | BROADLEY JAMES / 미국 |
| 제조자 | BROADLEY JAMES |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02) 896-7868 |
