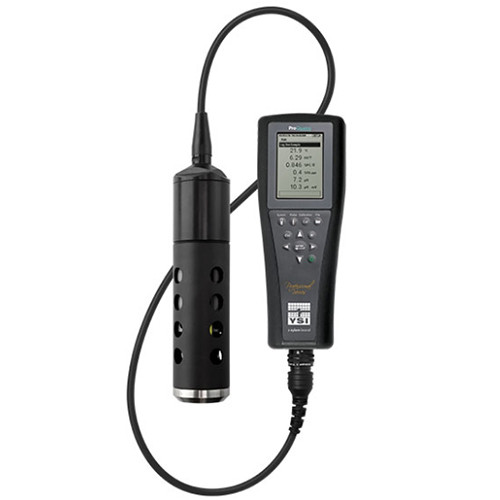

ProQuatro 휴대형 멀티측정기

모 델 명

ProQuatro

측정항목

DO, Cond, pH, Sal, ORP, Ammonium, Nitrate, Chloride, TDS, 온도, 압력

측정범위

0~50mg/L, 0~200mS/cm, 0~14pH, 0~70ppt, -1999~+1999mV, 0~200mg/L-N,

0~200mg/L-N~1000mg/L, 0~100g/L, -5~70℃, 375~825mmHg

정 확 도

±0.2mg/L, ±0.001mS/cm , ±0.2pH, ±0.1ppt, ±20mV, ±2mg/L-N, ±2mg/L-N, ±5mg/L, ±0.2℃, ±3mmHg

분 해 능

0.01mg/L, 0.001mS/cm , 0.01pH, 0.01ppt, 0.1mV, 0.1mg/L-N, 0.1mg/L-N, 0.1mg/L, 0.001g/L, 0.1℃, 0.1mmHg

Barometer

Range: 375 to 825 mmHg

Accuracy: ±1.5 mmHg from 0 to 50 °C

Resolution: 0.1 mmHg

Cable Options

Standard lengths of 1, 4, 10, 20 or 30 meters with single port, dual port or Quatro cables, Lab Cables: BOD sensor includes 2-meter cable; 1 or 4 meters on lab pH, ORP and pH/ORP cables

Certifications

RoHS, CE, FCC

Country of Origin

Assembled in the USA

Display

Backlit, graphic display

Languages

English, Spanish, German, French, Italian, Norwegian, Portuguese, Japanese, Chinese (Simplified and Traditional)

Logging Capabilities

Single point or continuous with autostable feature

Memory

5000 datasets; 50 unique data identifiers

Operating Temperature

-10 to 60 °C

Power

2 alkaline C-cells provide 80 continuous hours at ambient temperature without backlight; USB power or optional wall power can be supplied via micro USB port

Response Time

2.0 mil PE = 17 seconds and 3 in/sec flow, 1.25 mil PE = 8 seconds and 6 in/sec flow, 1 mil Teflon® = 18 seconds and 12 in/sec flow

Size

8.3 cm (w) x 21.6 cm (h) x 2.3 cm (d)

Storage Temperature

-20 to 70 °C

USB

Built-in micro USB port for on-the-go data exports via direct connection to the included USB stick ; user-upgradeable firmware via USB and website

Warranty

3-year instrument; 2-year cable

Waterproof

IP-67 (even with battery cover off); floats

Weight

475 grams (1.05 lbs.) with batteries
