• Waterproof and dustproof design

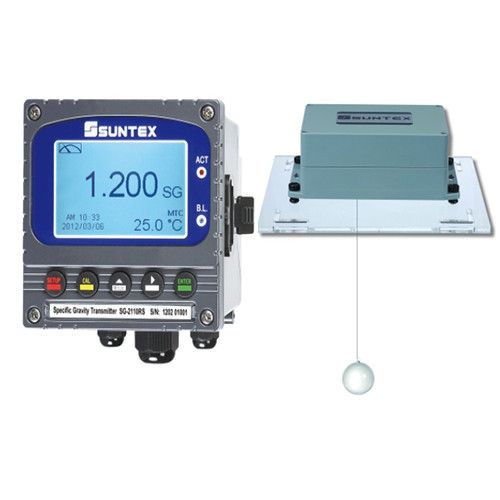

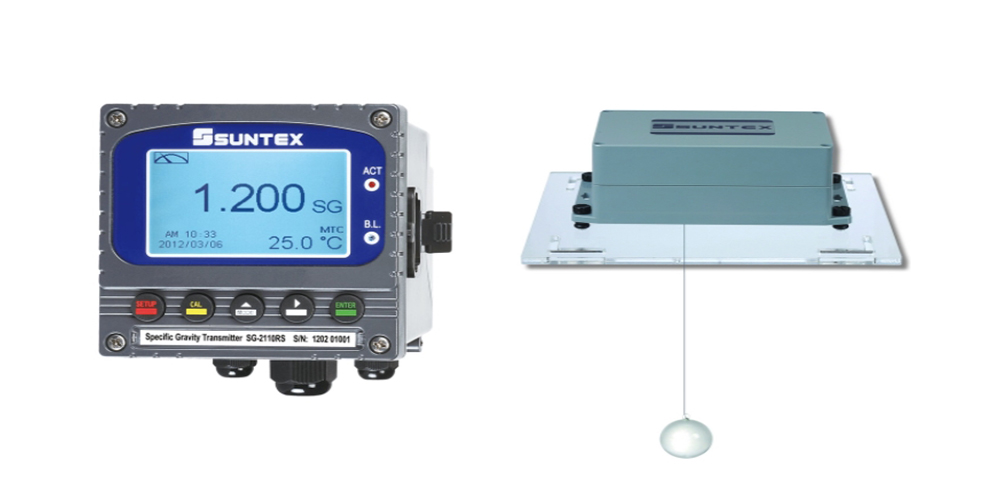

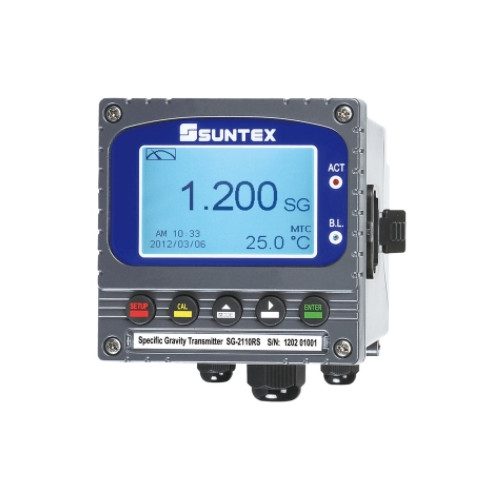

• 96 x 96mm microprocessor Specific Gravity/Baumé/Salinity/ Concentration transmitter
• Measuring unit: SG/°Bé/ ppt/ %
• User-friendly operation with text and graphic illustration, clear signs and easy to understand
• Measuring value can be selected for figure or chart display
• Trace mode can display historical measured value curve from 3-minute to 4-week program
• Equipped with logbook function
• Large LCM display with auto-sense backlight and contrast setting function
• Built-in Specific gravity - Concentration conversion table for setting, up to 10 points
• Cell constant, Pure water, Known solution— 3 types calibration
• Simultaneous display of measurement value and temperature
• Automatic temperature compensation for setting
• Equipped with one analog output DC 0/4~20mA, Max.500Ω and RS-485 interface
• Hi/Lo, Hi/Hi, Lo/Lo selectable two limited contact outputs with programmable set-points and hysteresis
• With password and multi-key design, enhanced security protection
• LED indicated alarm
• IP 65 (NEMA 4X)

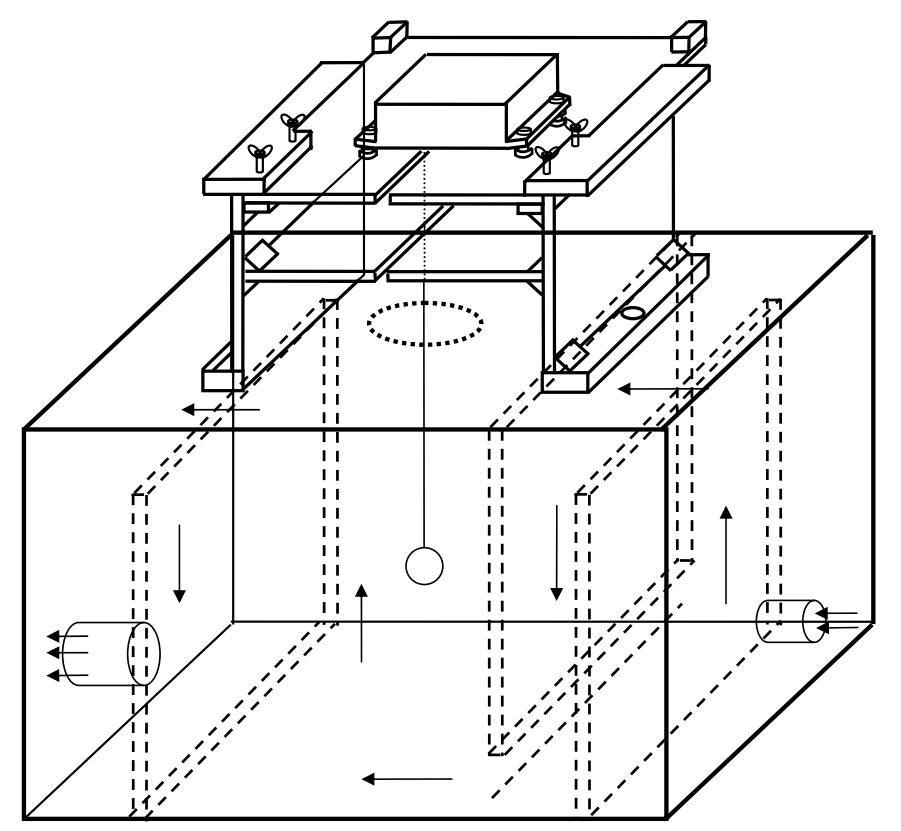

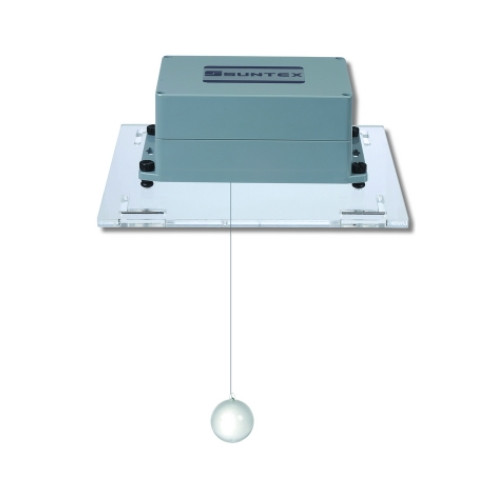

· Specific Gravity Sensor
• Load Cell & plummet principle
• High accuracy & long lifetime of reliability
• Wide range measurement
• Anti-acid gas design
(The
measuring range may depend on the density of chosen plummet)
