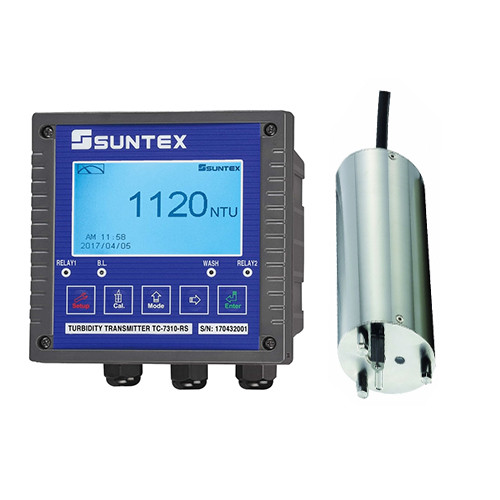

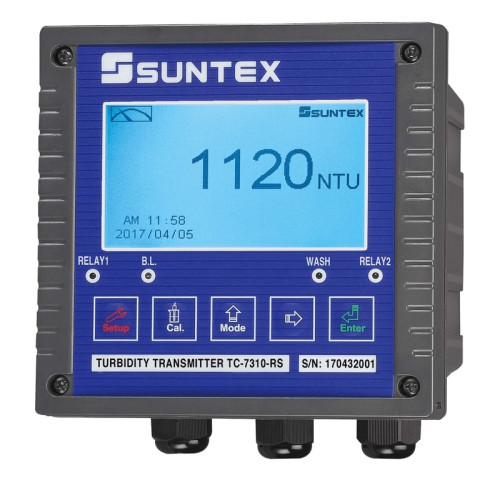

TC-7310RS-MxSA MLSS 측정기

모델명

TC-7310-RS-M

측정범위

0 ~ 50,000 mg/l (ppm)

측정단위

ppm, mg/l

분해능

1 mg/l (ppm) (TS-MxS-A Sensor)

주변온도

0 ~ 50°C

저장온도

-20 ~ 70°C

디스플레이

Large LCM with sensor for backlight and contrast

Text mode: Numerical display

Chart mode: 3 min real-time dynamic graph

Trace mode: Programmable 3 min to 4 week trend graph

아날로그출력

Isolated DC 0/4~20 mA corresponding to Turb/SS, max load 500Ω

시리얼 인터페이스

RS-485(MODBUS RTU or ASCII)

로그북

50 events

셋팅

Contact

240 VAC, 0.5A max. (recommended)

Activate

Two sets Hi/Lo programmable, ON/OFF

세척

ON:0~99분59초. / OFF: 0~999시간59분

센서 와이퍼

자동, 내부 10분 또는 30분 간격 고정된 내부 기능

수동, 2~9분 또는 2~29분 설정

전압출력

DC ±24V

전원

100V~240VAC±10%, 8W max.,50/60Hz

설치

Wall mounting, Pipe mounting, Panel mounting

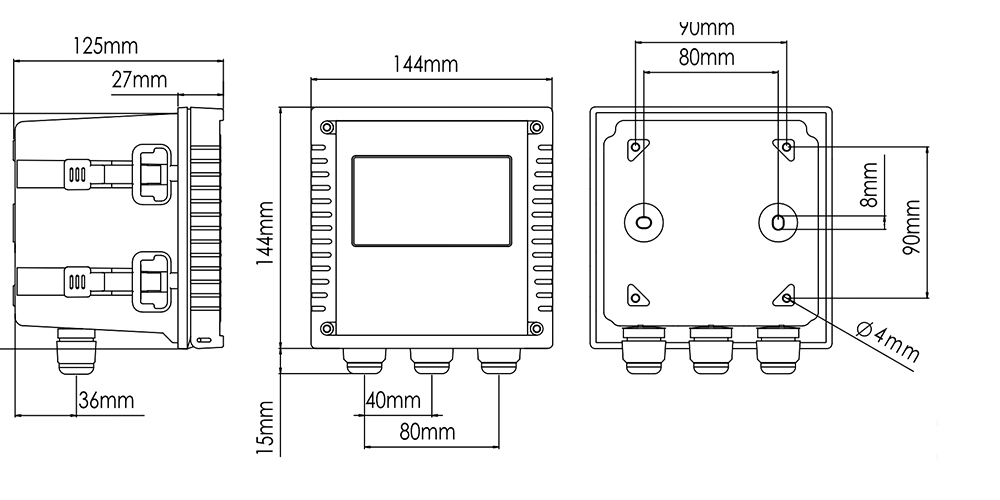

크기

144 mm x 144mm x 115 mm (H x W x D), 1/2 DIN

Cut off 치수

138 mm x 138 mm (H x W)

무게

0.8 kg

방수등급

IP 65 (NEMA 4X)

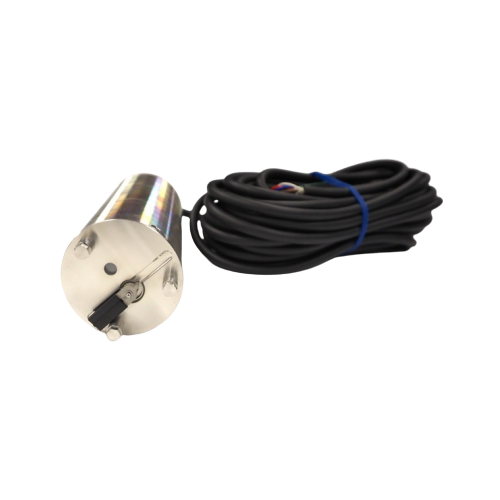

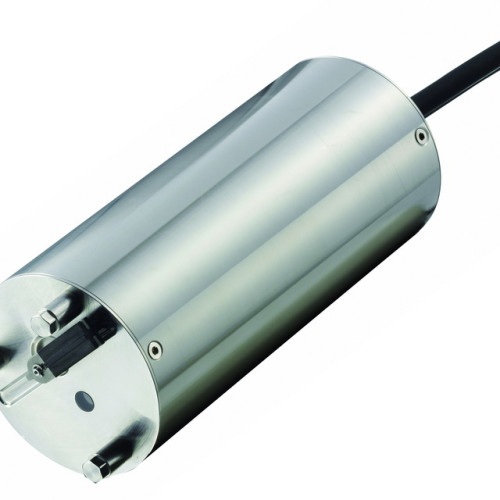

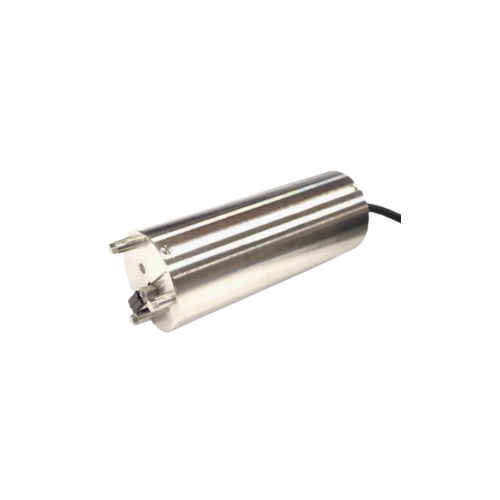

모델명

                                               6OPT-TS-MxS-A                         Made in Japan

Measuring range

0.000-50.00(g/l) (0~50,000mg/l standard substance: Kaolin)

Current draw

At regular operation: 50mA (Max.), At cleaning operation: 240mA (Max.) (excluding analog signal output).

Output

Analog (4-20mA) signal output: resistance load of 300Ω (Max.)

4mA: 0 (mg/l)

20mA: 50,000 (mg/l)

Self-checking output: open collector (24VDC 20mA Max.)

Input

Calibration signal input

Cleaning system

Automatic wiper cleaning system

Time interval for cleaning

Clean once immediately after power-on, and subsequently clean once every 10 minutes

Operating temperature

0~40°C(unfrozen)

Major material

SUS 316L, sapphire glass, fluorocarbon rubber, EPDM, PVC(cable)

Dimensions

approx.Ø48x146mm (excluding hanging attachment)

Weight

approx. 1.1kg

Degree of protection

IP 68, maximum depth of 2 meters (underwater type)

Power supply:

DC 24V±10%

Detector cable length

9m
