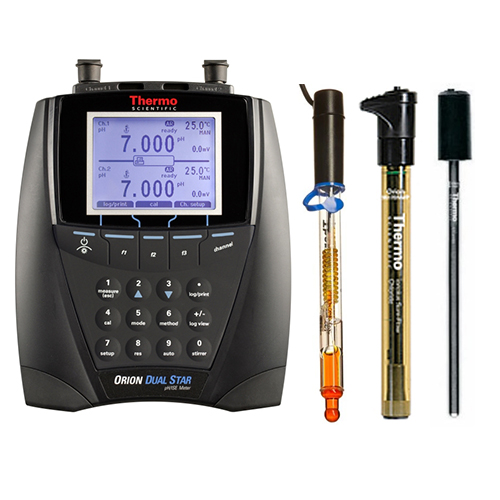

2115202-pH,ISE (Chloride) DUAL STAR pH,염소METER Orion 8172BNWP, 927007MD, 9617BNWP

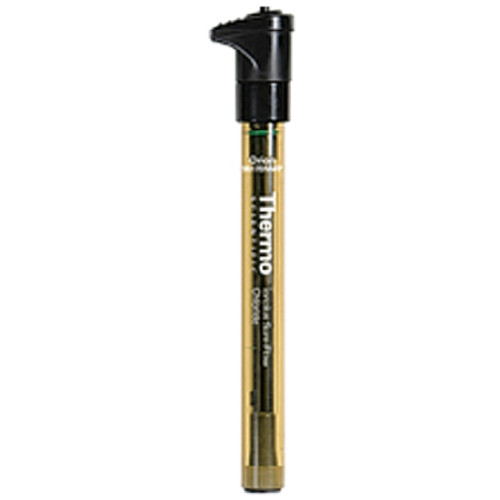

이온 센서

Chloride(Cl-,염소)

전극 모델

9617BNWP

전극 구조

Ionplus Sure-Flow solid state combination

측정범위

1.0x5x10^-5M

1.8~35,500ppm

측정온도

0~40 °C

PH 범위

3.5~9 PH

전극 저항

1~5megohms

재현성

±2%

규격

(size)

Electrode length

135mm

Diameter

12mm

Cap Diameter

16mm

Cable length

1m

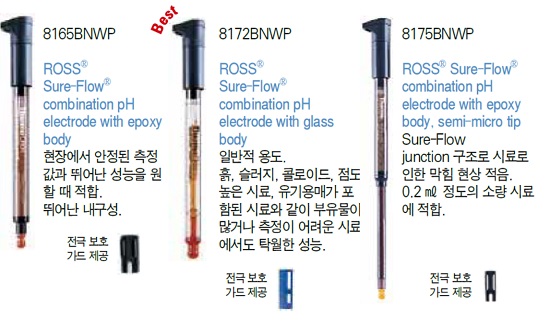

제품번호

8165BNWP

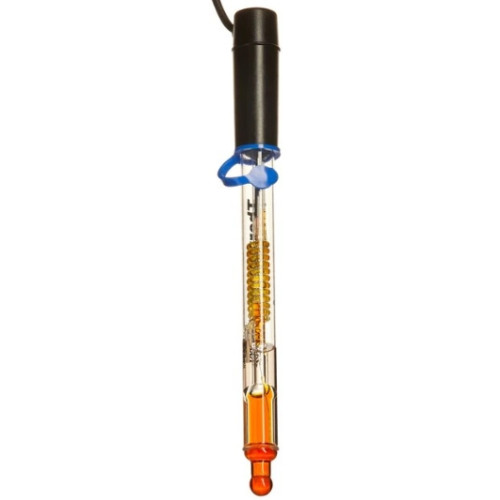

8172BNWP

8175BNWP

pH Range

0 – 14

0 – 14

0 – 14

pH Precision

0.01

0.01

0.01

Temp. Range

0 - 100 ℃

0 - 100 ℃

0 - 100 ℃

Intenal Reference

ROSS

ROSS

ROSS

Junction

Sure-Flow

Sure-Flow

Sure-Flow

Fill Solution

3 M KCl

3 M KCl

3 M KCl

Dimensions

L-120㎜

L-120㎜

L-165㎜

D(Dia) L(Length) T(Tip)

D-12㎜

D-12㎜

T- 8㎜ x 95㎜

Connector Type

BNC Waterproof

BNC Waterproof

BNC Waterproof

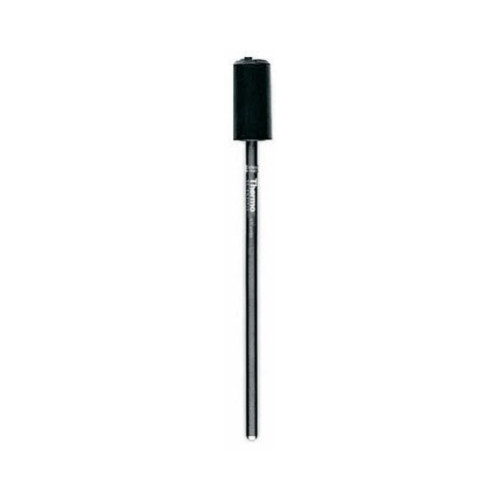

제품 번호

928007MD

(Star, Star A)

927007MD

(Star, Star A)

927005MD

(Star, Star A)

927006MD

(Star, Star A)

917007 (A+ Series)

917005 (A+ Series)

917006 (A+ Series)

Temp. Range

0 ~ 100 ℃

0 ~ 100 ℃

0 ~ 80 ℃

0 ~ 100 ℃

Temp. Accuracy

± 1 °C

± 1 °C

± 1 °C

± 1 °C

Dimensions

L - 117 mm

L - 120 mm

L - 120 mm

L - 120 mm

D(Dia) L(Length) T(Tip)

D - 5 mm

D - 6 mm

D - 6 mm

D - 8 mm

Connector Type

MiniDIN (Star, Star A)

MiniDIN (Star, Star A)

MiniDIN (Star, Star A)

MiniDIN (Star, Star A)

8 Pin (A+ Series)

8 Pin (A+ Series)

8 Pin (A+ Series)

Cat. No.

Description

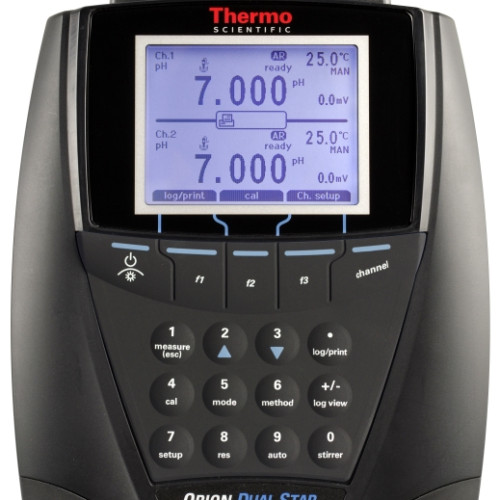

2115000

Orion Dual Star pH/ISE benchtop meter
Includes meter, 927007MD Orion stainless steel ATC probe, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115001

Orion Dual Star pH/ISE benchtop meter pH kit
Includes meter, 8102BNUWP ROSS Ultra glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 910104 Orion pH 4 buffer (475mL), 910107 Orion pH 7 buffer (475 mL), 910110 Orion pH 10 buffer (475 mL), 810001 ROSS pH electrode storage solution (475 mL), electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115101

Orion Dual Star pH/ISE benchtop meter & pH electrode set
Includes meter, 8102BNUWP ROSS Ultra glass-body pH electrode, 927007MD Orion stainless steel ATC probe, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115102

Orion Dual Star pH/ISE benchtop meter & pH/ATC Triode set
Includes meter, 8157BNUMD ROSS Ultra Triode epoxy-body pH/ATC electrode, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115201

Orion Dual Star pH/ISE benchtop meter pH & ammonia kit
Includes meter, 9512BNWP Orion ammonia ion selective electrode, 8172BNWP Orion ROSS Sure-Flow glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 096019 Orion Star stirrer probe, 951207 Orion 100 ppm ammonia standard (475 mL), 951211 Orion ammonia ISA ionic strength adjuster (475 mL), 810199 ROSS pH buffer and solution kit, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115202

Orion Dual Star pH/ISE benchtop meter pH & chloride kit
Includes meter, 9617BNWP Orion chloride ion selective electrode, 8172BNWP ROSS Sure-Flow glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 096019 Orion Star stirrer probe, 941708 Orion 1000 ppm chloride standard (475 mL), 940011 Orion chloride ISA ionic strength adjuster (475 mL), 810199 ROSS pH buffer and solution kit, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115203

Orion Dual Star pH/ISE benchtop meter pH & fluoride kit
Includes meter, 9609BNWP Orion fluoride ion selective electrode, 8172BNWP ROSS Sure-Flow glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 096019 Orion Star stirrer probe, 040908 Orion 10 ppm fluoride standard with TISAB II (475 mL), 040906 Orion 1 ppm fluoride standard with TISAB II (475 mL), 940909 Orion TISAB II total ionic strength adjustment buffer (3.8 L), 810199 ROSS pH buffer and solution kit, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115204

Orion Dual Star pH/ISE benchtop meter pH & nitrate kit
Includes meter, 9707BNWP Orion nitrate ion selective electrode, 8172BNWP ROSS Sure-Flow glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 096019 Orion Star stirrer probe, 930707 Orion 100 ppm nitrate standard (475 mL), 930711 Orion nitrate ISA ionic strength adjuster (475 mL), 810199 ROSS pH buffer and solution kit, electrode stand, computer interface cable, universal power supply, literature and calibration test certificate

2115205

Orion Dual Star pH/ISE benchtop meter pH & sodium kit
Includes meter, 8611BNWP ROSS sodium ion selective electrode, 8172BNWP ROSS Sure-Flow glass-body pH electrode, 927007MD Orion stainless steel ATC probe, 096019 Orion Star stirrer probe, 841108 Orion 1000 ppm sodium standard (475 mL), 841109 Orion KAP sodium standard & ISA solution (475 mL), 841111 Orion sodium ISA ionic strength adjuster (475 mL), 841113 Orion sodium electrode conditioning solution (475 mL), 841101 Orion sodium electrode storage solution (475 mL), 810199 ROSS pH buffer and solution kit, electrode stand,

computer interface cable, universal power supply, literature and calibration test certificate
