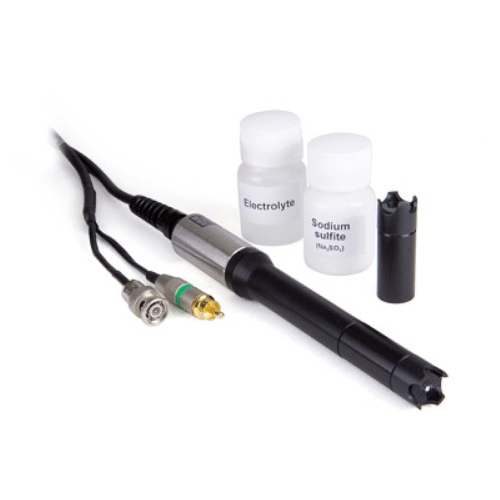

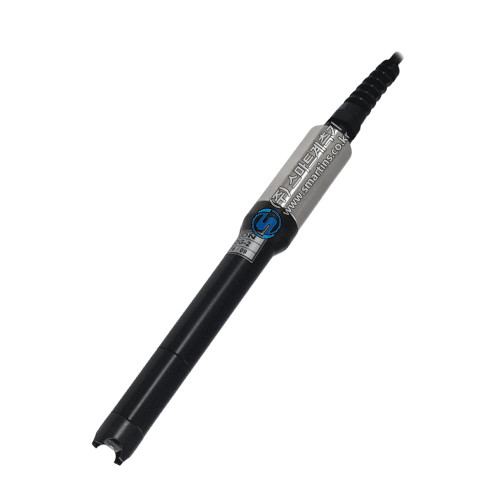

COG-2 용존산소 전극 Dissolved Oxygen Sensor CO-411 CX-401 CX-501

COG-2 DO 전극 ( Dissolved Oxygen Sensor )

센서신호(20℃)

in 100% O2 saturation(20mV)

in 0% O2 saturation(0,1mV)

응답속도

Time of response T90

<30s

측정권장온도(샘플)

0~40℃

최소측정값

0,1mg O2/l

정확도

for temp equal to calibration temp 1%

for temp ±5℃ from calibration temp 1%

for temp ±10℃from calibration temp 3%

Body 직경

18,0±0,5mm/24,0mm(handle with weight)

Body 길이

200,0mm±5mm

최소 침적깊이

60mm

Body 재질

Epoxy

멤브레인 재질

Teflon

케이블길이

4m, BNC-50/chinch(temperature)
